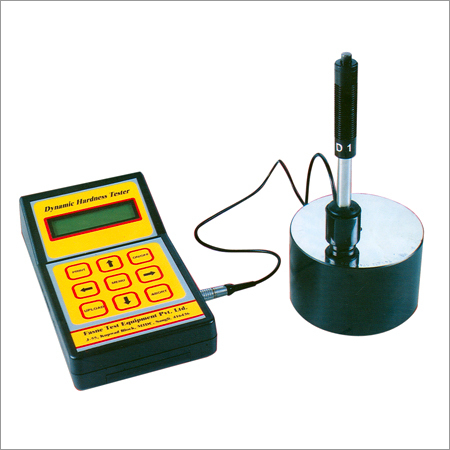

Dynamic Hardness Tester
Product Details:
X
Product Description
Dynamic Hardness Tester
Salient Features
- Sleek and handy design, comes in a slim briefcase, for carrying the machine.
- Alpha numeric display which indicates selected material and scale combination and hardness value.
- Average key to select average of 2 to 10 readings.
- Machine is having improved electronics with micro controller circuitry and user friendly software.
- 30 Hardness scales for different probes selectable by feather touch key (Pls. ref. the table).
- Auto detection of probe facility is given.
- Automatic shut down facility is provided when machine is not in use for continuously 10 minutes.
- This model operates on 2 numbers of pencil cells.
- Printing is possible with all types of ports i.e. Dot matrix (Centronic parallel port).
- Up to 100 reading can be stored in memory of the machine for printing purpose (This facility is useful when operating the machine at site).
- Low test expenditure.
- Five numbers of probes can be given in different combinations. For eg.
- D1, D2, G1, G2 and C
- D1, D2, D3, D4, and D5
- D1, D2,G1, SH and C
- Conversion of UTS facility is available on display by using side keys. This is applicable for only BHN scale for the range 226 ti 634 BHN (hard steel and hard alloys only).
- Display last result (For eg. From Sr. No. 20 onward) facility is given by using upper arrow key and down arrow key. Also we can scroll through stored reading.
- The ON/OFF switch is provided with feather touch keyboard on front side.
- In this model both serial and printer interfaces are available on single port (serial interface is an extra accessory).
- Automatic calibration facility of probe is available through keyboard.
- Serial interface is possible with RS 232.
- Date entry and date wise printout facility is available.
- We can recall the readings one by one by using arrow keys on display, in display result mode.
- Different types of probes are available
- Short (Suitable for checking hardness in holes, cylinders, etc.
- Extended (Suitable for checking hardness in grooves, and recesses)
- Low Energy (suitable for Surface Hardened Components, Coatings and impact Sensitive Components)
- Standard (Suitable for general application)
- Heavy (Suitable for castings and forgings)
- Special conversion scales can be offered to suit different material.
- Machine can be connected to computer for data loading using our serial interface card which is an extra accessory.
