Brinell Hardness Tester
Product Details:
X
Product Description

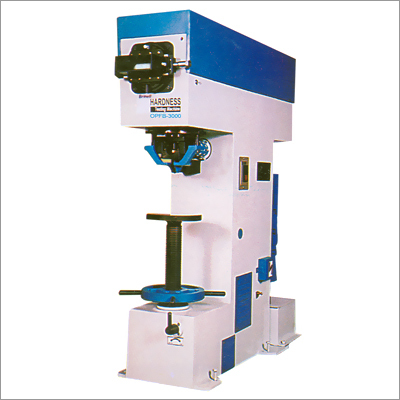

Brinell Hardness Testers
OPFB - 3000
'FTM has developed brinell Hardness Testing Machine with optical device. Basic machine design and operation is similar to TKB - 3000, with built - in optical device with 14 X magnification provided in front to project diameter of ball impression on glass screen with a micrometer measuring system with 0.01 mm least count. In this machine the indentor swivells and projects diameter of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression. This is a production testing machine. This is suitable for foundry, forging shops, heat treatment shops, engineering institutions etc.
Standard Accessories
| Model | OPFB- 3000 |
| Testing Table dia 200mm | 1 No. |
| Testing Table dia 50mm | - |
| Testing Table dia 70 mm with 'V' groove for round jobs dia 10 to 80mm | 1 No. |
| Ball holder dia 5 mm | 1 No. |
| Ball holder dia 10 mm | 1 No. |
| Test Block HB - 5 / 750 | 1 No. |
| Test Block HB - 10/3000 | 1 No. |
| Brinell microscope | - |
| Allen Spanner | 9 Pcs. |
| Steel Ball dia 5 mm | 5 Nos. |
| Steel Ball dia 10 mm | 5 Nos. |
| Instruction Manual | 1 Book |
Technical Data
| Model | OPFB - 3000 |
| Loads - Kgf | 500 to 3000 in stages of 250 |
| Initial Load - kgf | NIL |
| Max. test Height X Throat(mm) | 380 x 200 |
| Depth of elevating Screw below Base (mm)(Appx.) | 180 |
| Machine Height (mm) (Appx.) | 1225 |
| Size of Base (mm) (Appx.) | 380 x 740 |
| Nett. Weight - kg (Appx.) | 425 |
| Drive Motor - Hp | 0.33 |
| Mains - Supply | 415 V, 50 Hz, 3 Ph AC |
| Indentation Measurement | Direct reading optical device with 14 x Magnification. |
