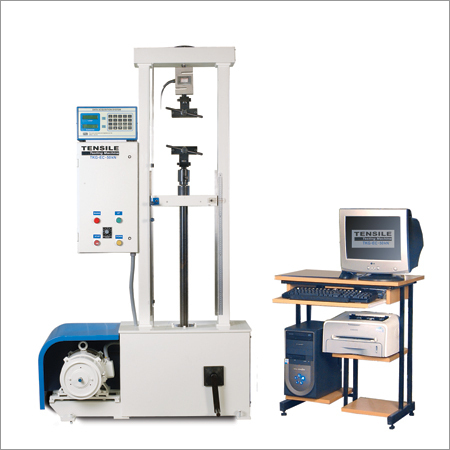

Computerised Tensile Testing Machine
Product Details:
X
Product Description
Computerised Tensile Testing Machine
Model: TKG-EC
Model: TKG-EC
- Latest Windows based, Users friendly, Accurate, Menu driven software.
- Fully automatic, on screen calculation based on the delivered date.
- Automatic Data capture, storage and graphic display.
- Recording, storage and retrival of results and details.
- Built in facility for printing of test results and the graph.
- Load measurement by load cell.
- Over Load and Over travel safety.
- On line display of Load, Elongation and Graph.
- Tare load and reset elongation facilities available.
- Selectable units like N, kN, kgf, lbf, inch, mm, etc.
- Fully automatic on screen calculation like UTS,Y.S, Proof stress, etc.
- Electronic Extensometer (Optional) is available for proof stress evaluation.
- It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
- Standard load resolution is with 10000 counts. Finer resolution (Optional) with 20000 counts can also be offered at extra cost. Standard displacement resolution is 0.1 mm.
- Types of tests, testing materials, grips, attachments, fixtures, straining speed as like Analogue version, Model: TKG.
- Various Models - Maximum Capacity from 200 N to 50 kN.
- Loading accuracy well within ± 1% conforms to IS: 1828 / BS: 1610.
