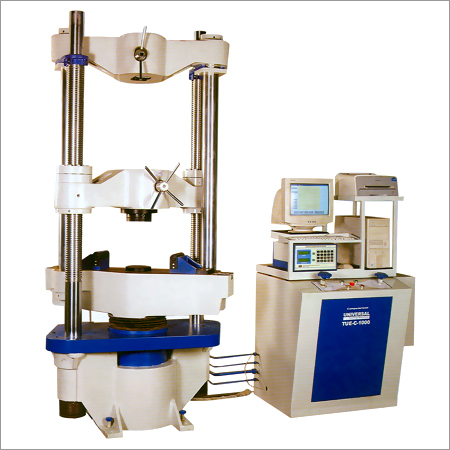

Computer Universal Testing Machine

Computer Universal Testing Machine

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

Computer Universal Testing Machine

Technical Specification For Computerised Versions

Model
 		TUE-C-100
 		TUE-C-200 TUE-C-400 TUE-C-600 TUE-C-1000 TUE-C-2000
Measuring Capacity (KN)
 		100
 		200
 		400
 		600
 		1000
 		2000
Measuring Range (KN)
 		0-100
 		0-200
 		0-400
 		0-600
 		0-1000
 		0-2000
Least Count (KN)
 		0.01
 		0.02
 		0.04
 		0.06
 		0.1
 		0.2
Load Range in KN with
accuracy of measurement ± 1%
 		2 to 100
 		4 to 200
 		8 to 400
 		12 to 600
 		20 to 1000
 		40 to 2000
Resolution of Piston
Movement (mm)
 		0.1
 		0.1
 		0.1
 		0.1
 		0.1
 		0.1
Over all dimensions approx. (mm)
 		1950x800x1850
 		2000x800x190
 		2100x800x2060
 		2200x800x2400
 		2350x800x2700
 		3000x800x3600
Weight approx. (kg)
 		1300
 		1400
 		2000
 		3000
 		4200
 		10000

Technical Specification for Analogue Versions
Model
 		TUN-100
 		TUN-200 TUN-400 TUN-600 TUN-1000 TUN-2000
Measuring Capacity (kN)
 		100
 		200
 		400
 		600
 		1000
 		2000
1'st Range (kN) 0-100
 		0-200
 		0-400
 		0-600
 		0-1000
 		0-2000
Least Count (kN) 0.2
 		0.4
 		0.8
 		1
 		2
 		4
2'nd Range (kN) 0-50
 		0-100
 		0200
 		0-300
 		0-500
 		0-1000
Least Count (kN) 0.1
 		0.2
 		0.4
 		0.5
 		1
 		2
3'rd Range (kN) 0-25
 		0-50
 		0-100
 		0-120
 		0-250
 		0-500
Least Count (kN) 0.05
 		0.1
 		0.2
 		0.2
 		0.5
 		1
4'th Range (kN) 0-10
 		0-20
 		0-40
 		0-60
 		0-100
 		0-200
Least Count (kN) 0.02
 		0.04
 		0.08
 		0.1
 		0.2
 		0.4
Over all dimension approx. (mm)
 		1950x800x1850
 		2000x800x1900
 		2100x800x2060
 		2200x800x2400
 		2350x800x2700
 		3000x800x3600
Weight approx  (kg)
 		1300
 		1400
 		2300
 		3200
 		5100
 		10000

Technical Specification for Analogue Cum Computerised Versions
Model
 		TUN-CN-100
 		TUN-CN-200 TUN-CN-400 TUN-CN-600 TUN-CN-1000 TUN-CN-2000
Measuring Capacity (kN)
 		100
 		200
 		400
 		600
 		1000
 		2000
Analogue System
1'st Range (kN) 0-100
 		0-200
 		0-400
 		0-600
 		0-1000
 		0-2000
Least Count (kN) 0.2
 		0.4
 		0.8
 		1
 		2
 		4
2'nd Range (kN) 0-50
 		0-100
 		0-200
 		0-300
 		0-500
 		0-1000
Least Count (kN) 0.1
 		0.2
 		0.4
 		0.5
 		1
 		2
3'rd Range (kN) 0-25
 		0-50
 		0-100
 		0-120
 		0-250
 		0-500
Least Count (kN) 0.05
 		0.1
 		0.2
 		0.2
 		0.5
 		1
4'th Range (kN) 0-10
 		0-20
 		0-40
 		0-60
 		0-100
 		0-200
Least Count (kN) 0.02
 		0.04
 		0.08
 		0.1
 		0.2
 		0.4
Computerised System
Measuring Range (kN) 0-100
 		0-200
 		0-400
 		0-600
 		0-1000
 		0-2000
Least Count (kN) 0.01
 		0.02
 		0.04
 		0.06
 		0.1
 		0.2
Load Range in kN with
accuracy of measurement ± 1%
 		2 to 100
 		4 to 200
 		8 to 400
 		12 to 600
 		20 to 1000
 		40 to 2000
Resolution of Piston
Movement (mm)
 		0.1
 		0.1
 		0.1
 		0.1
 		0.1
 		0.1
Over all dimensions approx. (mm)
 		1950x800x1850
 		2000x800x1900
 		2100x800x2060
 		2200x800x2400
 		2350x800x2700
 		3000x800x3600
Weight approx. (kg)
 		1300
 		1400
 		2300
 		3200
 		5100
 		10000

Other Products in 'Testing & Measuring Equipment' category

Dynamic Hardness Tester
Send Inquiry

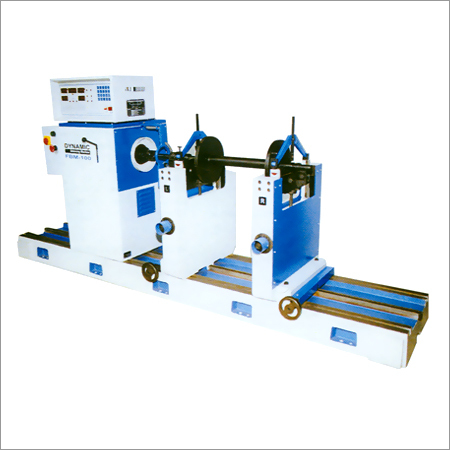

Dynamic Balancing Machine
Send Inquiry

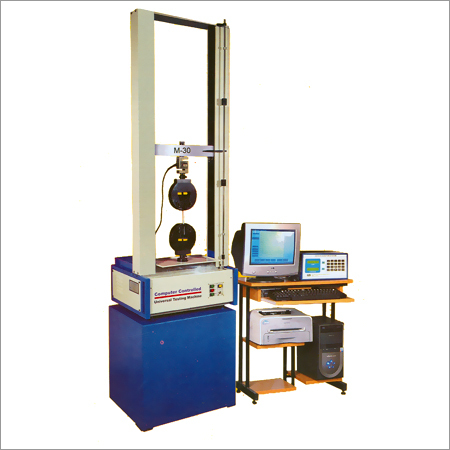

Computer Controlled Universal Testing Machine (Servo Drive Ball Screw Driven)
